SDY350T1 Series (350 / 230 Watts)



Features:
• Universal Input 100 – 240 Vac
• Power Density: 5.15 watts/cu in.
• Power Factor Corrected to EN61000-3-2 class D
• 3 Vdc – 60 Vdc Output
• Over-Current Protection
• Over-Voltage Protection
• Peak Power 600 W within 500 µs Duty Duration
• 3 Mechanical Options
• RoHS 2 (2011/65/EU) Compliant



Product Description

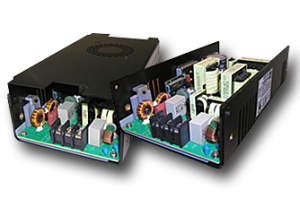

350 Watt (230 Watt Convection), Single Outputs, 3 – 60 Vdc, Open Frame 4.25″ x 8″, Active PFC, 3 Mechanical Options Available: U-Channel, U-Channel w/ Cover, Top-Mounted Fan. Output Connector available in 10-Pin Molex or 4-Pos. Terminal Block.
