Open Frame

Showing 1–16 of 17 results

  • SMF08Q – SMF12Q Series
    (8 – 12 Watts)



    • 8 – 12 Watts
    • 3.3 – 24 Vdc
    • PCB Pins
    • Medical & ITE Approval
    • DoE Level VI
    • IEC 60601-1-2 4th Edition EMC
    • UR/c-UR, UL/c-UL, TUV T-Mark, CE, CB



  • SMF120Q Series
    (120 Watts)



    • 120 Watts
    • 12 – 48 Vdc
    • Pin Header
    • Medical & ITE Approval
    • DoE Level VI
    • IEC 60601-1-2 4th Edition EMC
    • UR/c-UR, UL/c-UL, TUV T-Mark, CE, CB

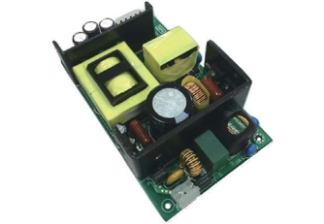

  • SMF150Q Series
    (150 Watts)



    • 150 Watts
    • 12 – 48 Vdc
    • Pin Header
    • Medical & ITE Approval
    • DoE Level VI
    • IEC 60601-1-2 4th Edition EMC
    • UR/cUR, UL/cUL, TUV T-Mark, CB

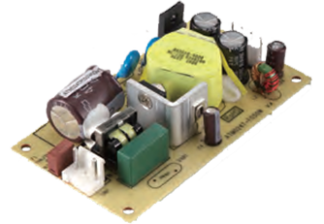

  • website pic

    SMF15Q – SMF24Q Series
    (15 – 24 Watts)



    • 15 – 24 Watts
    • 3.3 – 48 Vdc
    • PCB Pins or Pin Headers
    • Medical & ITE Approval
    • DoE Level VI
    • IEC 60601-1-2 4th Edition EMC
    • UR/c-UR, UL/c-UL, TUV T-Mark, CE, CB

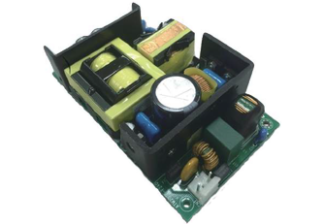

  • SMF192Q – SMF200Q Series
    (192 – 200 Watts)



    • 192 – 200 Watts
    • 12 – 48 Vdc
    • Pin Header
    • Medical & ITE Approval
    • DoE Level VI
    • UR/c-UR, UL/c-UL, TUV T-Mark, CB

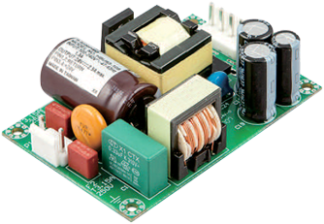

  • SMF35P1R - SMF63P1R Series

    SMF35P1R – SMF63P1R Series
    (35 – 60 Watts)



    • 5 – 48 Vdc
    • 2″ x 3″ Size
    • 2x MOPP Protection
    • ES/EN/IEC 60101-1 3.1 Medical
    • EN/IEC 60101-1-2 4th Ed. EMC
    • UR/c-UR, TUV T-Mark, CE, CB



  • SMF60Q – SMF65Q Series
    (60 – 65 Watts)



    • 60 – 65 Watts
    • 12 – 48 Vdc
    • Pin Header
    • Medical & ITE Approval
    • DoE Level VI
    • IEC 60601-1-2 4th Edition EMC
    • UR/c-UR, UL/c-UL, TUV T-Mark, CE, CB

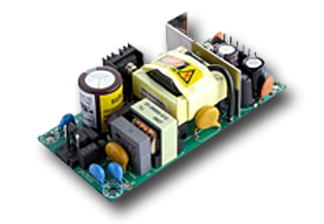

  • SMF31P Series
    (30 Watts)



    Features:
    • UL, EN, IEC 60601-1 3rd Edition Medical
    • 2 MOPP Protection
    • Universal Input 100 – 240 Vac
    • Output Voltage Available from 5 Vdc – 36 Vdc
    • Internal EMI Filter
    • Input Surge Current Protection
    • Over-Current Protection
    • Over-Voltage Protection
    • RoHS 2 (2011/65/EU) Compliant
    • 100% Burn-In
    • Class I



  • SMF31P1R Series
    (30 Watts)



    Features:
    • UL, EN, IEC 60601-1 3.1 Edition Medical
    • 2 MOPP Protection
    • Universal Input 100 – 240 Vac
    • 5 – 40 Vdc, Single Output
    • Internal EMI Filter
    • Over-Current Protection
    • Over-Voltage Protection
    • Short Circuit Protection
    • 100% Burn-In
    • RoHS 2 (2011/65/EU) Compliant
    • Class II



  • SMF61P1R Series
    (60 Watts)



    Features:
    • UL, EN, IEC 60601-1 3rd Edition Medical
    • 2 MOPP Protection
    • Universal Input 90 – 264 Vac
    • Single Output
    • Output Voltage Available from 12 Vdc – 40 Vdc
    • Size: 2” x 4” x 1”
    • Input Surge Current Protection
    • Over-Current Protection
    • Over-Voltage Protection
    • 100% Burn-In
    • RoHS 2 (2011/65/EU) Compliant
    • Class I

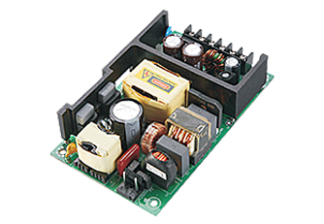

  • SMF81P Series
    (80 Watts)



    Features:
    • UL, EN, IEC 60601-1 3.1 Edition Medical
    • 2 MOPP Protection
    • Universal Input 90 – 264 Vac
    • Single Output Voltage Available from 5 Vdc – 36 Vdc
    • Over-Voltage, Over-Current, and Short Circuit Protection
    • Internal EMI Filter
    • Input Surge Current Protection
    • Active Power Factor Correction
    • 100% Burn-In
    • RoHS 2 (2011/65/EU) Compliant
    • Class I

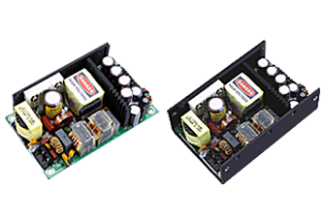

  • SMY150-151P Series
    (150 Watts)



    Features:
    • UL, EN, IEC 60601-1 3.1 Edition Medical
    • 2 MOPP Protection
    • Universal Input 100 – 240 Vac
    • Convection Cooled
    • Single Output 12, 24 Vdc
    • Active Power Factor Correction
    • Input Surge Current Protection
    • Over-Current Protection
    • Over-Voltage Protection
    • RoHS 2 (2011/65/EU) Compliant
    • 100% Burn-In
    • Class I



  • SMY240T2 Series
    (240 / 120 Watts)



    Features:
    • Universal Input 90 – 264 Vac
    • Power Factor Corrected to EN61000-3-2 class D
    • Power Density: 12.5 watts/cu in.
    • 5, 12, 24 Vdc Dual Output Combinations
    • Over-Current Protection, Over-Voltage Protection
    • Remote Sense & Remote On/Off
    • Peak Power 600 W within 500 µs Duty Duration
    • IEC / EN / UL 60601-1 3rd Edition
    • RoHS 2 (2011/65/EU) Compliant



  • SMU250P Series
    (250 Watts)



    Features:
    • UL, EN, IEC 60601-1 3.1 Edition Medical
    • 2 MOPP Protection
    • Universal Input 100 – 240 Vac
    • 5 Vdc Standby Output
    • Internal EMI Filter
    • Convection Cooled
    • Over-Voltage, Over-Current, and Short Circuit Protection
    • Active Power Factor Correction
    • 100% Burn-In
    • RoHS 2 Compliant
    • 2 MOPP Protection
    • Class I



  • SMY300T1 Series
    (300 / 150 Watts)



    Features:
    • Universal Input 90 – 264 Vac
    • Power Factor Corrected to EN61000-3-2 class D
    • Power Density: 12.5 Watts/cu in.
    • 12 Vdc – 52 Vdc Output
    • Over-Current Protection, Over-Voltage Protection
    • Remote Sense & Remote On/Off
    • Peak Power 600 Watts within 500 µs Duty Duration
    • IEC / EN / UL 60601-1 3rd Edition
    • RoHS 2 (2011/65/EU) Compliant



  • SMY400T1 Series
    (400 / 250 Watts)



    Features:
    • Universal Input 100 – 240 Vac
    • Power Density: 6.25 watts/cu inches
    • 2 Vdc – 60 Vdc Output
    • Over-Current Protection
    • Over-Voltage Protection
    • Peak Power 700 W within 500 µs duty duration
    • 3 Mechanical Options
    • Optional N+1 Forced Active Current Sharing
    • RoHS 2 (2011/65/EU) Compliant
